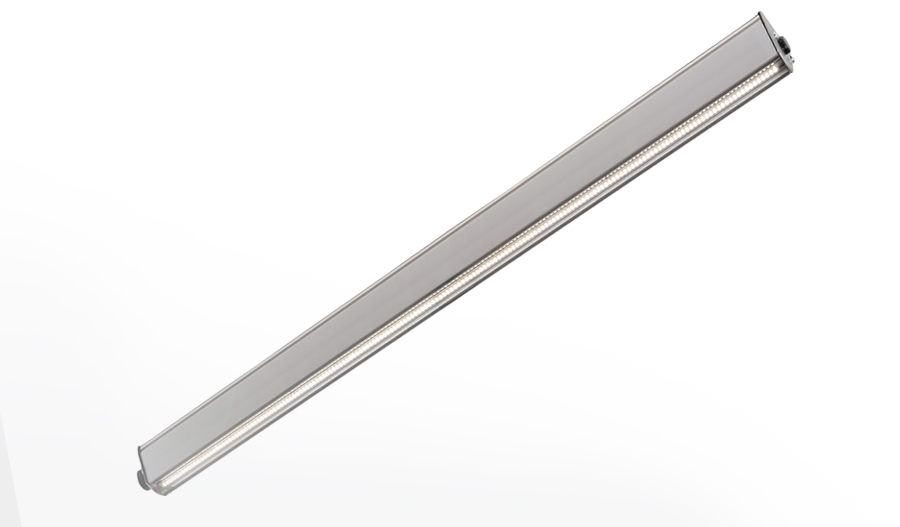

The Cador Slimline is the ideal replacement for traditional individual fluorescent luminaires. It is aluminaire with a simple design and high lightoutput.
The integrated optics provide perfect lightdistribution. The aluminium casing with its goodheat dissipation makes for a long lifespan. With its high impact resistance (IK10) the Cador Slimline is ideal for highly trafficked areas such ascorridors and stairwells. It can also be used tosupplement a linear lighting system, for example inmaintenance areas.
Technical information
IP code | IP65 |
Length | 808 mm |
Output flux | 4.300 - 9.200 lm |
Lumen/Watt | 113 - 159 W |
Voltage | 220 - 240 V |
Frequency | 50 ÷ 60 Hz |
Power factor | >0.95 |
Drivers | Signify or Osram |
Operational temperature | -25 ºC to+35 ºC |
Weight | 1 kg |
Application | Offices, parking areas and corridors |
Installation height | 2 - 6 m |
Colour temperature | Natural white (± 4.000 K) |
Colour Rendering Index (CRI) | >80 |
Lens options | Narrow, Wide, X-Wide, Lambertian & Diffuse |
Cover material | Polycarbonate |
Material | Anodized aluminium |
Colour consistency (SDCM) | 3 |
Dimmable | Optional (DALI) |
Impact resistance | IK10 (Diffuse only IK07) |
Options | DALI and CLO |
Warranty | L85B10/ at least 5 year warranty / Ta 35ºC |
Lifespan | It is possible to reach 100,000 hours |
BREEAM | Yes |
Ballproof | No |
